GD32VW553 Series

The GD32VW553 series MCU supports Wi-Fi 6 and Bluetooth LE 5.2 wireless connectivity. To meet the requirements of real-time processing and efficient communication, the GD32VW553 series MCU incorporates an open-source instruction set architecture based on a RISC-V processor core, operating at a maximum clock frequency of 160 MHz. The integrated 2.4 GHz Wi-Fi 6 RF module complies with the IEEE 802.11ax standard and is backward compatible with IEEE 802.11b/g/n standards, ensuring compatibility across different network environments. It supports Orthogonal Frequency Division Multiple Access (OFDMA), enabling multiple devices to share channel resources and delivering up to 60% higher data transmission rates compared to Wi-Fi 4. It also supports Multi-User Multiple-Input Multiple-Output (MU-MIMO), allowing multiple devices to operate simultaneously without interference, enabling high-efficiency, low-latency communication in high-density multi-device scenarios.

The integrated Bluetooth LE 5.2 RF module extends communication range, increases throughput, enhances security, and improves power efficiency in accordance with the latest Bluetooth specifications. It provides a 2 Mbps high-speed data mode and multiple data rates of 125 kbps and 500 kbps, effectively reducing transmission time and improving sensitivity. It enables stable and high-speed wireless connectivity even in complex multi-device environments.

The GD32VW553 series integrates up to 4 MB Flash, 320 KB SRAM, and 32 KB configurable instruction cache (I-Cache), significantly improving CPU processing efficiency. While delivering strong wireless performance, the GD32VW553 also integrates a rich set of general-purpose wired interfaces. The power supply voltage ranges from 1.8 V to 3.6 V, and the device supports an operating temperature of up to 105 °C, making it suitable for applications such as industrial interconnect systems, lighting equipment, and smart socket panels.

GigaDevice provides a Wi-Fi MCU development solution through the GD32VW55x series, offering a free Wi-Fi & BLE SDK software development framework. The GD32VW55x Software Development Kit is integrated with the GD32 Embedded Builder graphical tool, enabling intuitive visual configuration and automatic code generation. The SDK supports the RISC-V architecture and includes an RTOS, hardware drivers, network protocol stacks, and mainstream IoT communication protocols. Together with detailed API documentation and application notes, it significantly improves development efficiency for low-power, high-performance wireless applications.

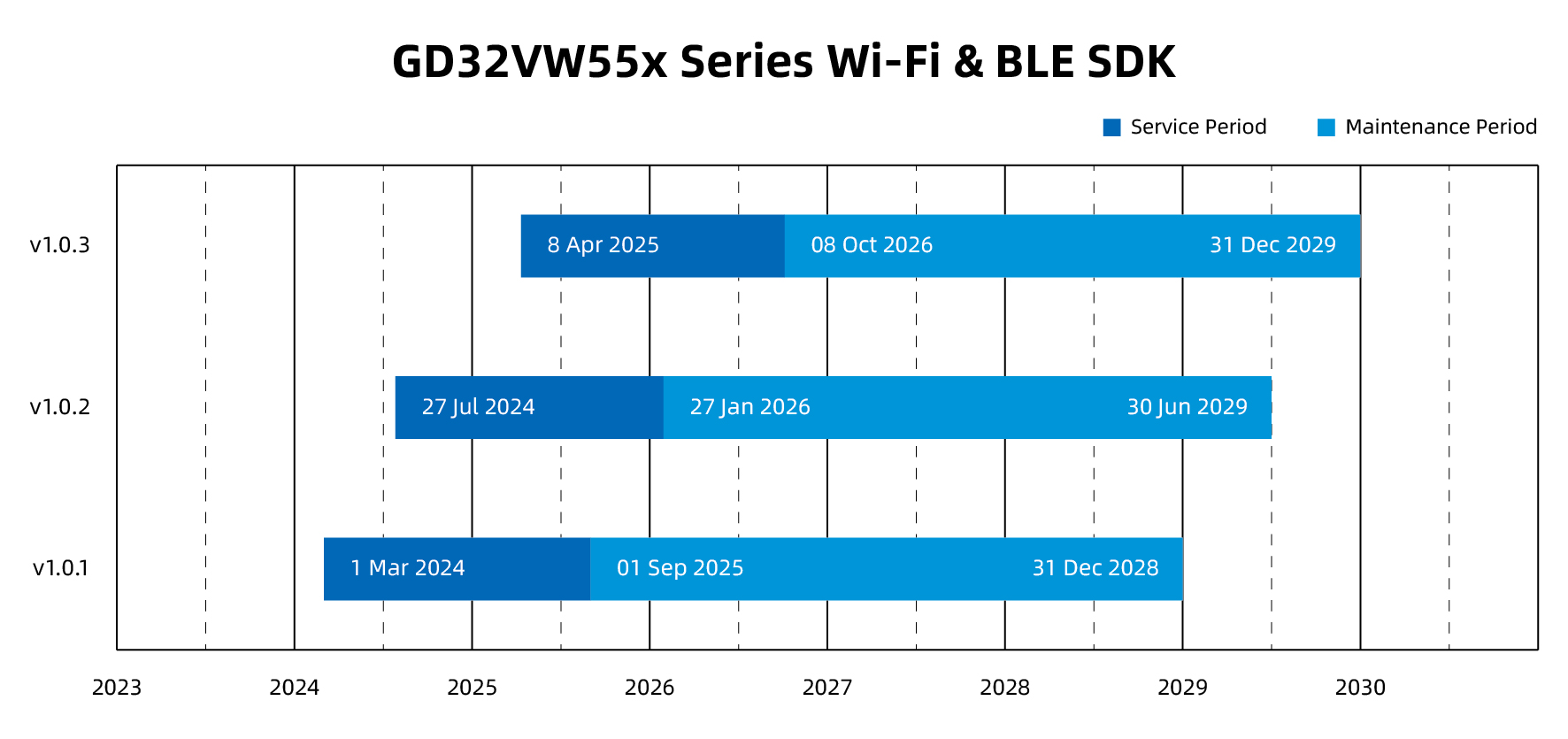

To ensure long-term reliability, GigaDevice has established a comprehensive version management mechanism for the GD32VW55x Wi-Fi & BLE SDK, along with dedicated service and maintenance cycles. This ensures that developers using the GD32VW55x Wi-Fi MCU receive stable and continuous technical support. For more information, please refer to the GD32VW55x software version support diagram.
